উৎপত্তি স্থল:
চীন
পরিচিতিমুলক নাম:
Kelong
সাক্ষ্যদান:
ISO9001 / IRIS
মডেল নম্বার:
KL62
Contact Us
• মোবাইল যন্ত্রপাতি
• নিউম্যাটিক সিলিন্ডার
• খননকারক
• প্রেস

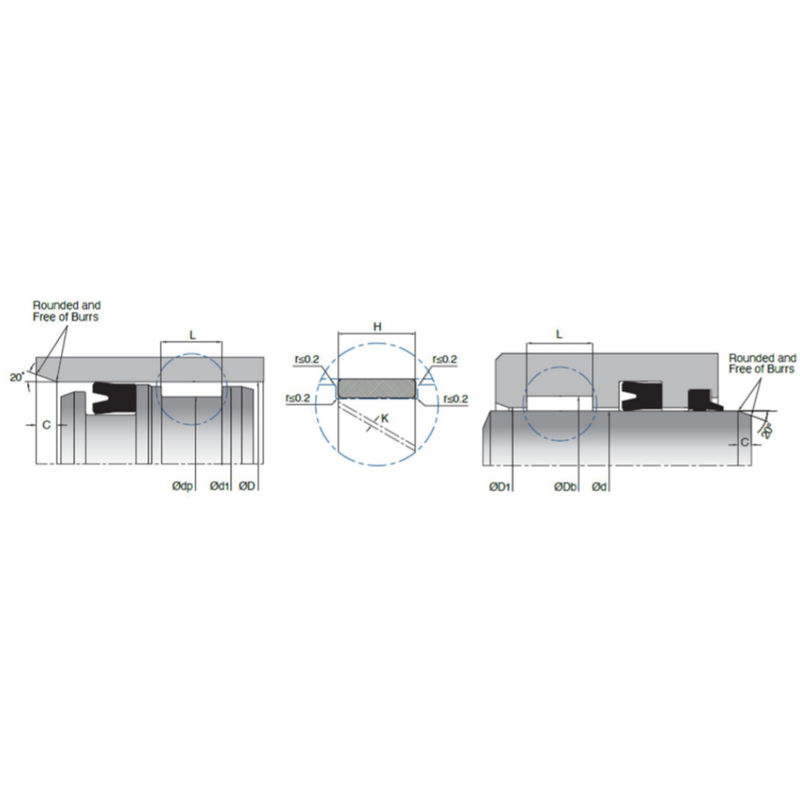

| d ((f8) dp ((h8) | Db ((H8) D ((H9) | L (+0.2/-0) | এইচ | d1 (h9) | ডি১ (এইচ৯) | উপাদান | |
| KL62-017 | 17 | 20 | 4 | 3.8 | 19 | 18 | PHENOLICS ARAMID |
| KL62-020 | 20 | 24 | 5.6 | 5.4 | 23 | 21 | PHENOLICS ARAMID |
| KL62-020/1 | 20 | 24 | 9.7 | 9.5 | 23 | 21 | PHENOLICS ARAMID |
| KL62-022 | 22 | 25 | 4 | 3.8 | 24 | 23 | PHENOLICS ARAMID |
| KL62-025 | 25 | 28 | 4 | 3.8 | 27 | 26 | PHENOLICS ARAMID |
| KL62-027 | 27 | 30 | 4 | 3.8 | 29 | 28 | PHENOLICS ARAMID |
| KL62-029 | 29 | 32 | 5 | 4.8 | 31 | 30 | PHENOLICS ARAMID |
| KL62-030 | 30 | 35 | 9.7 | 9.5 | 33.2 | 31.8 | PHENOLICS ARAMID |
| KL62-032 | 32 | 35 | 5 | 4.8 | 34 | 33 | PHENOLICS ARAMID |
| KL62-035 | 35 | 40 | 9.7 | 9.5 | 38.2 | 36.8 | PHENOLICS ARAMID |
| KL62-035/1 | 35 | 40 | 15 | 14.8 | 38.2 | 36.8 | PHENOLICS ARAMID |
| KL62-037 | 37 | 40 | 5 | 4.8 | 39 | 38 | PHENOLICS ARAMID |
| KL62-040/1 | 40 | 45 | 15 | 14.8 | 43.2 | 41.8 | PHENOLICS ARAMID |
| KL62-042 | 42 | 45 | 5 | 4.8 | 44 | 43 | PHENOLICS ARAMID |
| KL62-045/1 | 45 | 50 | 9.7 | 9.5 | 48.2 | 46.8 | PHENOLICS ARAMID |
| KL62-045/2 | 45 | 50 | 15 | 14.8 | 48.2 | 46.8 | PHENOLICS ARAMID |
| KL62-046 | 46 | 50 | 9.7 | 9.5 | 49 | 47 | PHENOLICS ARAMID |
| KL62-047 | 47 | 50 | 5 | 4.8 | 49 | 48 | PHENOLICS ARAMID |
| KL62-050 | 50 | 55 | 5.6 | 5.4 | 53.2 | 51.8 | PHENOLICS ARAMID |
| KL62-050/1 | 50 | 55 | 9.7 | 9.5 | 53.2 | 51.8 | PHENOLICS ARAMID |
| KL62-050/2 | 50 | 55 | 15 | 14.8 | 53.2 | 51.8 | PHENOLICS ARAMID |
| KL62-055 | 55 | 60 | 9.7 | 9.5 | 58.2 | 56.8 | PHENOLICS ARAMID |
| KL62-055/1 | 55 | 60 | 15 | 14.8 | 58.2 | 56.8 | PHENOLICS ARAMID |
| KL62-058 | 58 | 63 | 9.7 | 9.5 | 61.2 | 59.8 | PHENOLICS ARAMID |
| KL62-060/1 | 60 | 65 | 15 | 14.8 | 63.2 | 61.8 | PHENOLICS ARAMID |
| KL62-063 | 63 | 68 | 15 | 14.8 | 66.2 | 64.8 | PHENOLICS ARAMID |
| KL62-065 | 65 | 70 | 9.7 | 9.5 | 68.2 | 66.8 | PHENOLICS ARAMID |
| KL62-065/1 | 65 | 70 | 15 | 14.8 | 68.2 | 66.8 | PHENOLICS ARAMID |
| KL62-070/1 | 70 | 75 | 15 | 14.8 | 73.2 | 71.8 | PHENOLICS ARAMID |
| KL62-075 | 75 | 80 | 9.7 | 9.5 | 78.2 | 76.8 | PHENOLICS ARAMID |
| KL62-075/1 | 75 | 80 | 5.6 | 5.4 | 78.2 | 76.8 | PHENOLICS ARAMID |
| KL62-075/2 | 75 | 80 | 15 | 14.8 | 78.2 | 76.8 | PHENOLICS ARAMID |
| KL62-080 | 80 | 85 | 9.7 | 9.5 | 83.2 | 81.8 | PHENOLICS ARAMID |
| KL62-080/1 | 80 | 85 | 15 | 14.8 | 83.2 | 81.8 | PHENOLICS ARAMID |
| KL62-085 | 85 | 90 | 15 | 14.8 | 88.2 | 86.8 | PHENOLICS ARAMID |
| KL62-090 | 90 | 95 | 15 | 14.8 | 93.2 | 91.8 | PHENOLICS ARAMID |
| KL62-090/1 | 90 | 95 | 9.7 | 9.5 | 93.2 | 91.8 | PHENOLICS ARAMID |
| KL62-095 | 95 | 100 | 9.7 | 9.5 | 98.2 | 96.8 | PHENOLICS ARAMID |
| KL62-095/1 | 95 | 100 | 15 | 14.8 | 98.2 | 96.8 | PHENOLICS ARAMID |
| KL62-100 | 100 | 105 | 9.7 | 9.5 | 103.2 | 101.8 | PHENOLICS ARAMID |
| KL62-120 | 120 | 125 | 9.7 | 9.5 | 123.2 | 121.8 | PHENOLICS ARAMID |
| KL62-125 | 125 | 130 | 15 | 14.8 | 128.2 | 126.8 | PHENOLICS ARAMID |
| KL62-130 | 130 | 135 | 15 | 14.8 | 133.2 | 131.8 | PHENOLICS ARAMID |
| KL62-155 | 155 | 160 | 15 | 14.8 | 158.2 | 156.8 | PHENOLICS ARAMID |
| KL62-160 | 160 | 165 | 15 | 14.8 | 163.2 | 161.8 | PHENOLICS ARAMID |
| KL62-195 | 195 | 200 | 15 | 14.8 | 198.2 | 196.8 | PHENOLICS ARAMID |
| KL62-245 | 245 | 250 | 15 | 14.8 | 248.2 | 246.8 | PHENOLICS ARAMID |
| KL62-315 | 315 | 320 | 15 | 14.8 | 318.2 | 316.8 | PHENOLICS ARAMID |
| KL62-315/1 | 315 | 320 | 9.7 | 9.5 | 318.2 | 316.8 | PHENOLICS ARAMID |
